無刷無齒槽電機
EC系列直流無刷無槽電機提供Ø13mm, Ø16mm, Ø22mm等多種外徑及機身長度規格，各系列均提供多種額定電壓版本，根據客戶需求提供齒輪箱、編碼器、高低速應用、高低溫環境等定制選項，更多產品詳情敬請咨詢鳴志在線客服。
ECU30042系列直流無刷無齒槽電機
Ø30mm直流無刷無齒槽電機、多種減速機和編碼器方案可供選擇、小尺寸、大力矩、高轉速
| 型號 | 額定電壓 | 空載轉速 (rpm) |
電機長度 (mm) |
額定功率 | 額定轉矩 (mNm) |
額定電流 (A) |
速度/轉矩斜率 (rpm/mNm) |
重量 (kg) |
價格(未稅) | 比較 |
|---|---|---|---|---|---|---|---|---|---|---|
| ECU30042H12-S001 | 12Vdc | 10250 | 42 | 32 | 24 | 2.08 | 37.9 | 0.176 |
￥1,343.00
|
|
| ECU30042H24-S001 | 24Vdc | 10300 | 42 | 32 | 24 | 1.04 | 38 | 0.176 |
￥1,343.00
|
|
| ECU30042H24-S002&M24-1024 | 24Vdc | 10300 | 51.9 | 32 | 24 | 1.04 | 37.3 | 0.204 |
￥1,939.00
|
|
| ECU30042H24-S004&PG32A-0005 | 24Vdc | 1988 | 72.3 | 32 | 110 | 1.04 | 38 | 0.282 |
￥1,977.00
|
|
| ECU30042H24-S004&PG32A-0016 | 24Vdc | 649 | 82.1 | 32 | 270 | 1.04 | 38 | 0.3305 |
￥2,091.00
|
|
| ECU30042H24-S004&PG32A-0035 | 24Vdc | 294.3 | 82.1 | 32 | 660 | 1.04 | 38 | 0.3305 |
￥2,091.00
|
|
| ECU30042H24-S004&PG32A-0100 | 24Vdc | 103 | 91.6 | 32 | 1680 | 1.04 | 38 | 0.3665 |
￥2,244.00
|
|
| ECU30042H24-S004&PG32A-0253 | 24Vdc | 41 | 101.1 | 32 | 3780 | 1.04 | 38 | 0.4115 |
￥2,434.00
|
|
| ECU30042H24-S004&M24-1024&PG32A-0005 | 24Vdc | 1988 | 82.4 | 32 | 110 | 1.04 | 38 | 0.3 |
￥2,573.00
|
|
| ECU30042H24-S004&M24-1024&PG32A-0035 | 24Vdc | 294.3 | 91.7 | 32 | 600 | 1.04 | 38 | 0.35 |
￥2,687.00
|
|
| ECU30042H24-S003&M24-1024&PG32M-0062 | 18Vdc | 130 | 97.7 | 32 | 1100 | 1.04 | 37.3 | 0.4 |
￥3,042.00
|
|
| ECU30042H24-S004&M24-1024&PG32A-0100 | 24Vdc | 103 | 101.2 | 32 | 1680 | 1.04 | 38 | 0.3855 |
￥2,839.00
|
|
| ECU30042H24-S003&M24-1024&PG32M-0231 | 18Vdc | 34.6 | 97.7 | 32 | 4150 | 1.04 | 37.3 | 0.4 |
￥3,042.00
|
|
| ECU30042H24-S004&M24-1024&PG32A-0253 | 24Vdc | 40.8 | 110.7 | 32 | 3780 | 1.04 | 38 | 0.423 |
￥3,030.00
|
|
| ECU30042H24-S005&P22-S17B&PG32A-0005 | 24Vdc | 1988 | 103 | 32 | 110 | 1.04 | 37.3 | 0.3106 |
￥5,020.00
|
|
| ECU30042H24-S005&P22-S17B&PG32A-0016 | 24Vdc | 649 | 111 | 32 | 270 | 1.04 | 37.3 | 0.342 |
￥5,134.00
|
|
| ECU30042H24-S005&P22-S17B&PG32A-0035 | 24Vdc | 294 | 111 | 32 | 660 | 1.04 | 37.3 | 0.3585 |
￥5,134.00
|
|
| ECU30042H24-S005&P22-S17B&PG32A-0100 | 24Vdc | 103 | 120.5 | 32 | 1680 | 1.04 | 37.3 | 0.3945 |
￥5,286.00
|
|
| ECU30042H24-S005&P22-S17B&PG32A-0253 | 24Vdc | 41 | 130 | 32 | 3780 | 1.04 | 37.3 | 0.4395 |
￥5,477.00
|
展開查看更多
ECU30064系列直流無刷無齒槽電機
Ø30mm直流無刷無齒槽電機、多種減速機和編碼器方案可供選擇、9000rpm、小尺寸、大力矩、高轉速
| 型號 | 額定電壓 | 空載轉速 (rpm) |
電機長度 (mm) |
額定功率 | 額定轉矩 (mNm) |
額定電流 (A) |
最大連續轉矩 (mNm) |
最大連續電流 (A) |
速度/轉矩斜率 (rpm/mNm) |
轉子慣量 (g?cm2) |
重量 (kg) |
價格(未稅) | 比較 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECU30064H12-S001 | 12Vdc | 9806 | 64 | 73 | 60 | 4.76 | 76 | 7.14 | 11 | 19.4 | 0.274 |
￥1,561.00
|
|
| ECU30064H24-S001 | 24Vdc | 9955 | 64 | 73 | 60 | 2.43 | 75.7 | 3.84 | 10 | 19.4 | 0.274 |
￥1,561.00
|
|
| ECU30064H36-S001 | 36Vdc | 9980 | 64 | 73 | 60 | 1.65 | 75.3 | 2.61 | 10 | 19.4 | 0.274 |
￥1,561.00
|
|
| ECU30064H48-S001 | 48Vdc | 9972 | 64 | 73 | 60 | 1.25 | 75.3 | 1.98 | 9 | 19.4 | 0.274 |
￥1,561.00
|
|
| ECU30064H24-S002&M24-1024 | 24Vdc | 9955 | 73.8 | 73 | 60 | 2.43 | 10.1 | 0.286 |
￥2,157.00
|
||||
| ECU30064H48-S002&M24-1024 | 48Vdc | 9972 | 73.8 | 73 | 60 | 1.25 | 9.4 | 0.274 |
￥2,157.00
|
||||
| ECU30064H24-S006&P22-S17B | 24Vdc | 9955 | 93.3 | 73 | 60 | 2.43 | 10.1 | 0.286 |
￥4,604.00
|
||||
| ECU30064H24-S004&PG32A-0005 | 24Vdc | 1922 | 94.8 | 73 | 260 | 2.43 | 10 | 0.3088 |
￥2,195.00
|
||||
| ECU30064H24-S004&PG32A-0016 | 24Vdc | 626.9 | 104.1 | 73 | 690 | 2.43 | 10.1 | 0.43 |
￥2,309.00
|
||||
| ECU30064H24-S004&PG32A-0035 | 24Vdc | 285 | 104.1 | 73 | 1650 | 2.43 | 10 | 0.427 |
￥2,309.00
|
||||
| ECU30064H24-S004&PG32A-0100 | 24Vdc | 99.7 | 113.6 | 73 | 4200 | 2.43 | 10 | 0.4635 |
￥2,461.00
|
||||
| ECU30064H24-S004&PG32A-0253 | 24Vdc | 39.5 | 123.1 | 73 | 8000 | 2.15 | 10 | 0.505 |
￥2,651.00
|
||||
| ECU30064H24-S003&PG32M-0062 | 24Vdc | 162 | 110 | 73 | 2770 | 2.43 | 10.1 | 0.487 |
￥2,664.00
|
||||
| ECU30064H36-S003&PG32M-0103 | 36Vdc | 97 | 110 | 73 | 4630 | 1.65 | 9.6 | 0.489 |
￥2,664.00
|
||||
| ECU30064H24-S004&M24-1024&PG32A-0005 | 24Vdc | 1922 | 104.4 | 73 | 260 | 2.43 | 10 | 0.3808 |
￥2,791.00
|
||||
| ECU30064H24-S004&M24-1024&PG32A-0016 | 24Vdc | 626.9 | 113.7 | 73 | 690 | 2.43 | 10.1 | 0.439 |
￥2,905.00
|
||||
| ECU30064H24-S004&M24-1024&PG32A-0100 | 24Vdc | 99.7 | 123.2 | 73 | 4200 | 2.43 | 10.4 | 0.473 |
￥3,057.00
|
||||
| ECU30064H24-S004&M24-1024&PG32A-0253 | 24Vdc | 39.5 | 132.7 | 73 | 8000 | 2.15 | 10.4 | 0.518 |
￥3,247.00
|
||||
| ECU30064H24-S004&M24-1024&PG32A-0035 | 24Vdc | 285 | 113.7 | 73 | 1640 | 2.43 | 10.4 | 0.439 |
￥2,905.00
|
||||
| ECU30064H24-S005&P22-S17B&PG32A-0005 | 24Vdc | 1922 | 123.7 | 73 | 260 | 2.43 | 10 | 0.415 |
￥5,238.00
|
||||
| ECU30064H24-S005&P22-S17B&PG32A-0016 | 24Vdc | 626.9 | 133 | 73 | 690 | 2.43 | 10.1 | 0.461 |
￥5,352.00
|
||||
| ECU30064H24-S005&P22-S17B&PG32A-0035 | 24Vdc | 285 | 133 | 73 | 1650 | 2.43 | 10.1 | 0.461 |
￥5,352.00
|
||||
| ECU30064H24-S005&P22-S17B&PG32A-0100 | 24Vdc | 100 | 142.5 | 73 | 4200 | 2.43 | 10.1 | 0.5 |
￥5,504.00
|
||||
| ECU30064H24-S005&P22-S17B&PG32A-0253 | 24Vdc | 39.5 | 152 | 73 | 8000 | 2.15 | 10.1 | 0.541 |
￥5,694.00
|
展開查看更多

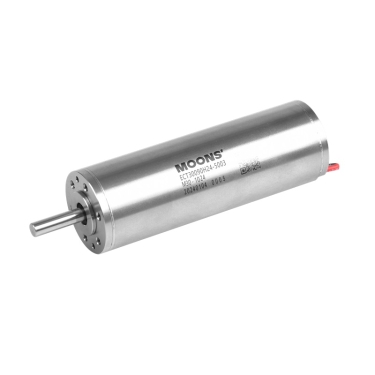

ECT30090高扭矩直流無刷無齒槽電機
Ø30mm高扭矩直流無刷無齒槽電機、多種減速機和編碼器方案可供選擇、10000rpm、218mNm、小尺寸、大力矩、高轉速
| 型號 | 額定電壓 | 空載轉速 (rpm) |
電機長度 (mm) |
額定轉矩 (mNm) |
額定電流 (A) |
最大連續轉矩 (mNm) |
最大連續電流 (A) |
速度/轉矩斜率 (rpm/mNm) |
轉子慣量 (g?cm2) |
重量 (kg) |
價格(未稅) | 比較 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECT30090H24-S001 | 24Vdc | 10500 | 90 | 135 | 5.82 | 218.69 | 11.16 | 2.27 | 46.8 | 0.4 |
￥4,528.00
|
|
| ECT30090H24-S004&PG32M-0062 | 18Vdc | 128 | 135.7 | 5000 | 4.45 | 2.27 | 0.578 |
￥5,631.00
|
||||
| ECT30090H24-S003&M30-1024 | 24Vdc | 10500 | 90 | 135 | 5.82 | 218.69 | 11.16 | 2.27 | 46.8 | 0.404 |
￥5,226.00
|
|
| ECT30090H24-S002&M30-1024&PG32M-0004 | 18Vdc | 2031 | 119.2 | 480 | 5.8 | 2.37 | 0.544 |
￥6,012.00
|
||||
| ECT30090H24-S002&M30-1024&PG32M-0035 | 24Vdc | 294 | 127.5 | 2900 | 4.47 | 2.1 | 45 | 0.578 |
￥6,151.00
|
